RK3568 ARM Motherboard
R2-356801 is an ARM motherboard based on Rockchip RK3568 quad-core Cortex-A55. It features a compact 89×73mm form factor and integrates Mali-G52 GPU and 1 TOPS NPU, delivering a cost-effective ARM solution for embedded AIoT and edge computing.
Product Features
- Powered by Rockchip RK3568 processor with 4 × Cortex‑A55 cores, up to 2.0GHz
- Core board dimension: 89×73mm, compact ARM embedded solution
- Mali-G52 GPU supporting OpenGL ES 1.1/2.0/3.2, Vulkan 1.1, OpenCL 2.0
- 1 TOPS INT8 NPU, supports AI inference acceleration
- Onboard LPDDR4 1GB (8GB optional) + eMMC 16GB + Micro SD card slot
- 1×Mini HDMI（3840×2160@60FPS）+ 1×MIPI DSI（30Pin）+ 1×Type-C
- Operating temperature: 0~60℃, supports Linux / Buildroot

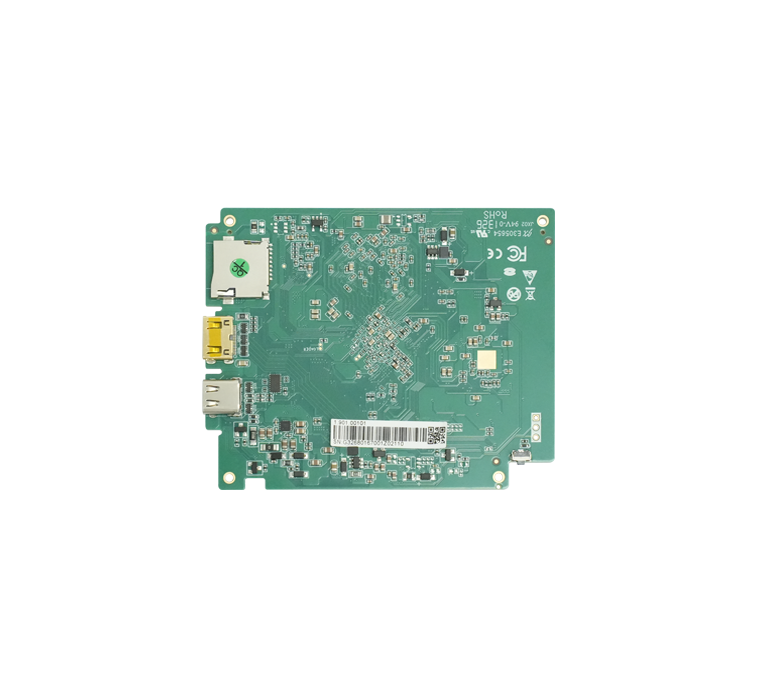

R2-356801 is equipped with the Rockchip RK3568 processor featuring 4 × Cortex‑A55 cores with a maximum frequency of 2.0GHz. It integrates Mali‑G52 GPU and a 1 TOPS NPU (INT8), delivering hardware acceleration for AI inference and graphics processing. The core board measures 89×73mm with green PCB.
It adopts onboard LPDDR4 memory, 1GB standard (8GB optional). For storage, it provides 16GB eMMC and 1 × Micro SD card slot. Display outputs include 1 × Mini HDMI (3840×2160@60FPS) and 1 × MIPI DSI (30Pin FPC connector). There is also 1 × Type‑C interface supporting charging, data transmission and debug.
Other features include encryption IC, optional Wi‑Fi module and gravity sensor. Power input via 3Pin connector. Operating temperature: 0~60℃; storage temperature: -20~70℃. Humidity: 5%~85% (non-condensing at 0~45℃) / 5%~95% (non-condensing at -40~85℃). Supports Linux and Buildroot.
| R2-356801 | |
| CPU | Processor: Rockchip RK3568 + RK809, 4 × Cortex‑A55, up to 2.0GHz |
| GPU | Mali-G52 |
| GPU API | OpenGL ES1.1/2.0/3.2，Vulkan1.1，OpenCL2.0 |
| NPU | INT8，1TOPS |
| Memory | LPDDR4 |
| Max Memory | 1GB(8GB Optional) |
| Storage | eMMC 16GB + 1×Micro SD Card |
| Display Outputs | 1×Mini HDMI（3840×2160@60FPS）+ 1×MIPI DSI（30Pin_0.4mm） |
| Type-C | 1 × Type‑C (charging, data transfer and debug only; no video output) |
| Serial Ports | 1×UART for Debug（10Pin_0.4mm） |
| Other Features | Encryption IC + optional Wi‑Fi module + gravity sensor |
| Power Input | 1×3Pin |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 5%~85% Humidity (non-condensing, 0~45℃) |
| Storage Humidity | 5%~95% Humidity (non-condensing, -40~85℃) |
| Core Board Size | 89×73mm |
| PCB Color | Green |
| Operating System | Linux / buildroot |
8.ZRT.80-1670-01-LEF (R2-356801_V10, Custom Board, 1 × Type‑C, 1 × HDMI-C, TF Card Slot, 1 × LPDDR4, 16GB eMMC, bulk pack, 60 pcs per pack)
