RK3568 ARM Motherboard

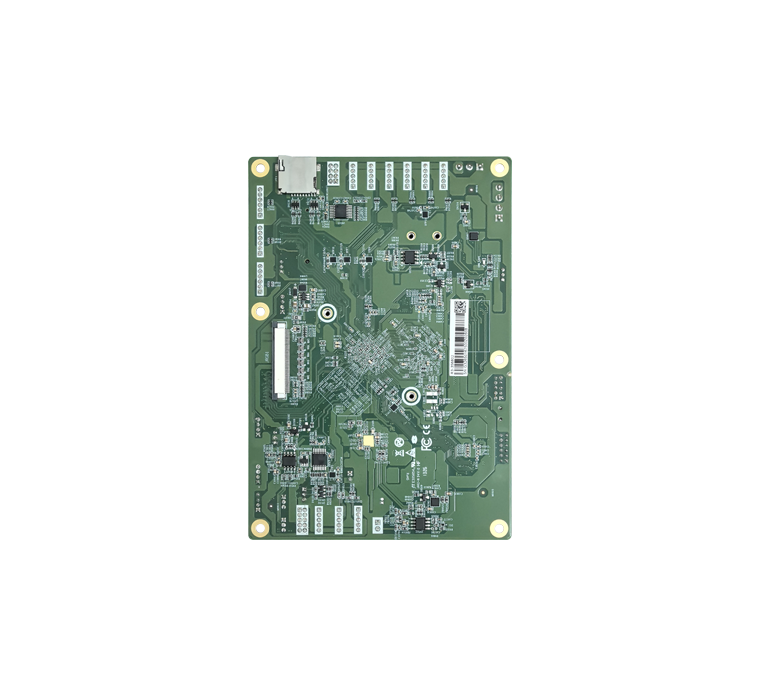

R3-356802 is an ARM core board based on Rockchip RK3568 quad-core Cortex-A55. It integrates Mali-G52 GPU and 1 TOPS NPU, supporting triple-display outputs of HDMI/RGB/LVDS, abundant serial ports and CAN bus. It delivers a comprehensive ARM solution for industrial control, AIoT and embedded devices.
Product Features
- Powered by Rockchip RK3568 processor with 4 × Cortex-A55 cores, up to 2.0GHz
- ARM motherboard solution with compact embedded design
- Mali-G52 GPU + 1 TOPS INT8 NPU, supports AI inference
- Onboard LPDDR4 1GB + eMMC 8GB + Micro SD card slot
- 1 × HDMI + 1 × RGB + 1 × LVDS (single/dual 8-bit), triple display outputs
- 2×RS232 + 7×TTL-5V + 2×CAN + SPI + I2C
- Optional M.2 4G/5G + Wi-Fi 6 + Bluetooth, supports battery charging, operating temperature: 0~60℃
R3-356802 is equipped with the Rockchip RK3568 processor featuring 4 × Cortex‑A55 cores, with a maximum frequency of 2.0GHz. It integrates Mali‑G52 GPU and a 1 TOPS NPU (INT8).
It comes with onboard LPDDR4 1GB memory. For storage, it offers 8GB eMMC and 1 × Micro SD card slot. Display outputs include 1 × HDMI (3840×2160@60MHz), 1 × RGB (800×480 / 800×600) and 1 × LVDS (single/dual 8-bit, supporting resolutions from 800×600 up to 1920×1080).
It features abundant communication interfaces: 2 × RS232 (touchscreen compatible), 7 × TTL‑5V, 1 × RS232 (TTL‑5V optional), 2 × CAN, 1 × SPI, 1 × I2C (touchscreen compatible). USB ports: 2 × USB2.0 (1 for debugging, 1 for HUB expansion). The audio amplifier supports up to 4Ω‑3W speakers. Networking: 1 × RJ45 Gigabit Ethernet. Optional Wi‑Fi 6, Bluetooth and M.2 4G/5G modules.
Other functions: software power-on, 1 × microphone, 1 × 12V fan header, hardware watchdog, nurse call emulated GPIO, battery charging function (compatible with 11.1V‑4800mAh and 14.8V‑2600mAh battery packs). Input power: 15V/6.67A or 18V/2.22A. The board provides 5V/3A and 12V/3A power outputs. Operating temperature: 0~60℃; storage temperature: -20~70℃; humidity: 5%~85% (non-condensing at 0~45℃). Supports Linux and Buildroot.
| R3-356802 | |
| Processor | Rockchip RK3568 + RK809,4×Cortex-A55,up to 2.0GHz |
| GPU | Mali-G52 |
| GPU API | OpenGL ES1.1/2.0/3.2，Vulkan1.1，OpenCL2.0 |
| NPU | INT8，1TOPS |
| Memory | LPDDR4 |
| Max Memory | 1GB |
| Storage | eMMC 8GB + 1×Micro SD Card |
| M.2 Slot | 1×M.2 for 4G/5G |
| Display Outputs | 1 × HDMI (3840×2160@60Hz) + 1 × RGB (800×480 / 800×600) + 1 × LVDS (single/dual 8-bit, 800×600 ~ 1920×1080) |
| Serial Ports | 2 × RS232 (touchscreen compatible) + 7 × TTL‑5V + 1 × RS232 (TTL‑5V optional) |
| CAN | 2×CAN |
| SPI | 1×SPI |
| I2C | 1 × I2C (touchscreen compatible) |
| USB | 2 × USB2.0 (1 for debugging, 1 for HUB expansion) |
| Audio | Amplifier supports up to 4Ω‑3W speakers |
| Network Interface | 1×RJ45 10/100/1000M |
| Bluetooth | Supported |
| WiFi | WiFi6 Supported |
| Other Functions | Software power-on + 1 × microphone + 1 × 12V fan header + hardware watchdog + nurse call emulated GPIO + battery charging |
| Power Input | 15V/6.67A or 18V/2.22A |
| Power Output | 5V/3A + 12V/3A |
| Battery Charging | 1.2A charging when powered on, 2.2A charging when powered off; compatible with 11.1V‑4800mAh and 14.8V‑2600mAh batteries |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 5%~85% Humidity (non-condensing at 0~45℃) |
| Storage Humidity | Storage Humidity |
| PCB Color | Green |
| Operating System | Linux / buildroot |
