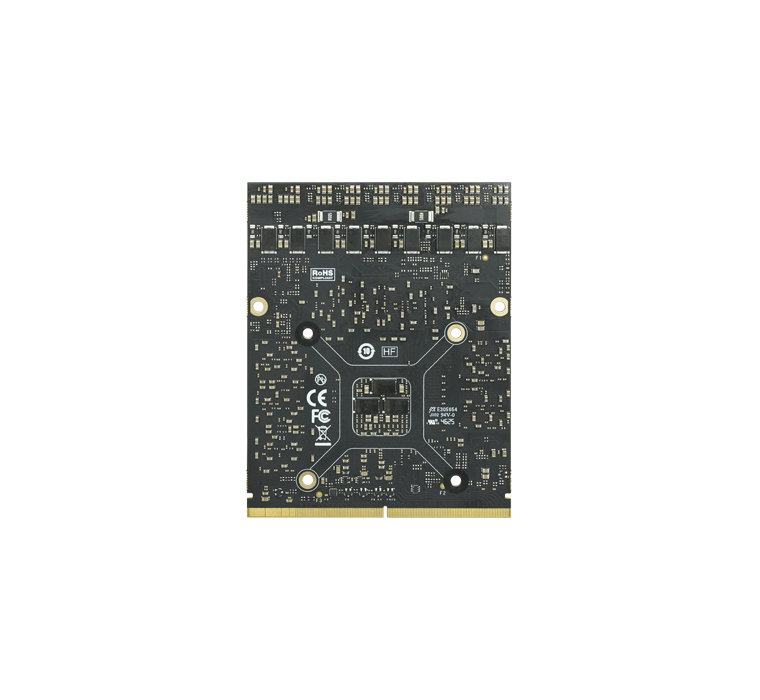

RTX 4090M MXM Module
MM4090B6-16G is flagship MXM gaming&professional graphics card based on the NVIDIA Ada Lovelace architecture.Equipped with 16GB GDDR6 VARM and 9728 CUDA Cores,it supports PCIe 4.0 x16 and multi-channel 8K display outputs,delivering yop-tier computing power for high-end embedded graphics applications.
Product Features
- NVIDIA Ada Lovelace Architecture with NVIDIA GeForce RTX4090 Max-Q GPU
- 16GB GDDR6 256-bit VARM with 576GB/s memory bandwidth
- 9728 CUDA Cores,304 Tensor Cores,76 RT Cores
- MXM 3.1 Type B Form Factor (105×82mm)，
- PCIe 4.0 x16 interface;Multi-display output:2×DP 1.4++ + HDMI2.1 + eDP + HDMI,supports 8K@120Hz/8K@60Hz
- TDP 130W(70W/90W/150W optional)
- Supports Windows 10/11 and Linux
MM4090B6-16G features the NVIDIA GeForce RTX4090 Max-Q GPU built on the Ada Lovelace architecture.It comes 9728 CUDA Cores,304 Tensor Cores and 76 RT Cores,delivering a single-precision computing performance of 38.2 TFLOPS,making it the performance flagship among MXM graphics cards.
Its 16GB GDDR6 256-bit VARM offers an ultra-high bandwidth 576GB/s,effortlessly handling large game engines,8K video post-processing and demanding AI inference workloads.Built to the MXM 3.1 Type B standard factor (105×82mm),it connects via the PCIe 4.0 x16 bus.It provides 2×DisplayPort 1.4++,1×HDMI 2.1,1×eDP and 1×HDMI outputs,supporting up to 7680×4320@120Hz(DP) or 8K@60Hz(HDMI) on a single display.
The TDP is 130W with optional multi-power proliles of 70W/90W/150W for flexible adaptation to various thermal conditions.It supports Windows 10/11 64-bit and Linux operating systems with an operating temperature range of 0~45°C.It is widely deployed in high-end medical imaging,AI all-in-one machines,professional visual workstations and high-performance edge computing devices.
| Model | MM4090B6-16G |
| GPU Architecture | NVIDIA Ada Lovelace |
| GPU Model | NVIDIA GeForce RTX4090 Max-Q |
| VARM Capacity | 16GB |
| VARM Type | GDDR6 |
| VARM Bit Width | 256bit |
| Memory Bandwidth | 576GB/s |
| Core Clock(Base/Boost) | 930/1455MHz |
| CUDA Core | 9728 |
| Tensor Core | 304 |
| RT Core | 76 |
| TMUs | 304 |
| ROPs | 112 |
| SM Count | 76 |
| PCIe Interface | PCI Express 4.0 x16 |
| MXM Form Factor | MXM 3.1 Type B |
| Size | 105 × 82 mm |
| TDP | 130W(70W/90W/150W optional) |
| Display Outputs | 2×DP 1.4++ + HDMI2.1 + eDP + HDMI |
| Max Resolution | DP: 7680×4320@120Hz / HDMI: 8K@60Hz |
| Operating System | Windows 10/11 64bit、Linux |
| Operating Temperature | 0°C ~ 45°C |
| Storage Temperature | -20°C ~ 75°C |
| Operating Humidity | 0%~95%(Non-condensing) |
| Storage Humidity | 10%~90% |
| Supply Voltage | DC 12~19V，3.3V&5V±5% |
| Single Precision FP | 38.2 TFLOPS |
| Double Precision FP | 600 GFLOPS |
| DirectX | 12 Ultimate (12_2) |
| OpenGL | 4.6 |
| OpenCL | 3.0 |
| Vulkan | 1.3 |
| Shader Model | 6.7 |
| CUDA Version | 8.6 |
Model: MM4090B6-16G | VRAM: 16GB GDDR6 256-bit | Interface: MXM 3.1 Type B | TDP: 130W (70W/90W/150W optional)
