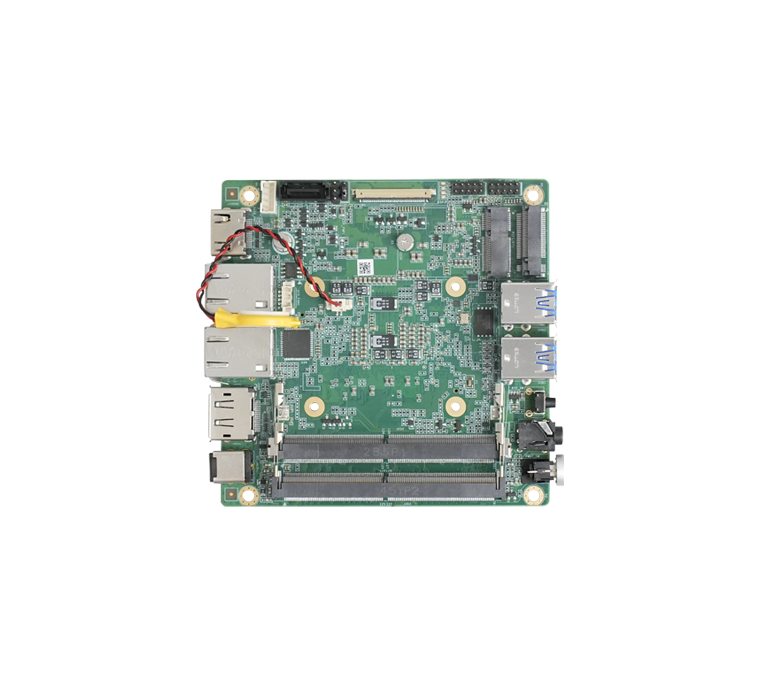

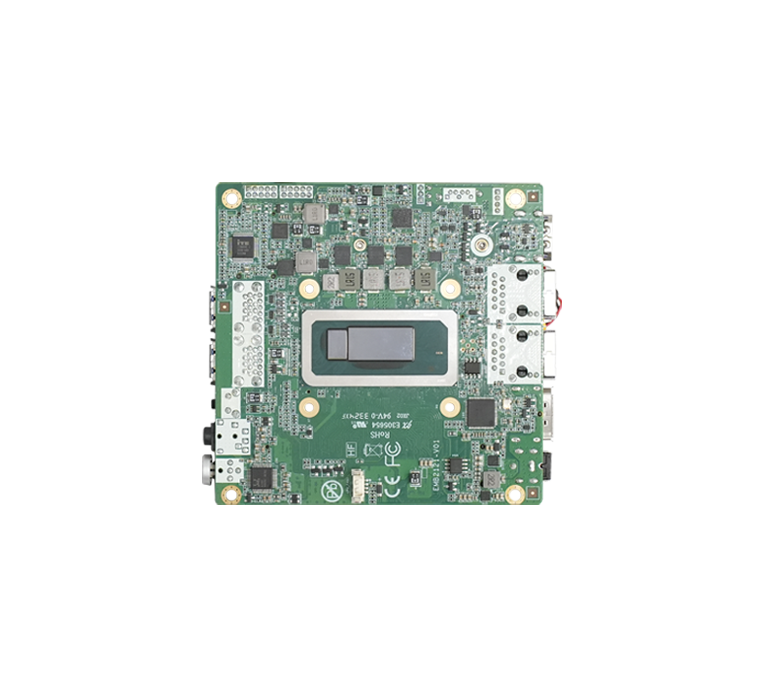

Ultra-compact 10×10 Industrial Motherboard, EMB-2121
EMB-2121 is a 10×10 industrial motherboard based on 12th/13th Gen Intel Alder Lake-P / Raptor Lake-P platforms. It features an ultra-compact 100×100mm form factor and dual-channel DDR5 memory technology. Equipped with triple display outputs of HDMI2.0 + DP++ + eDP and M.2 NVMe expansion, it delivers a high-performance compact computing platform for embedded devices and industrial edge applications.
Product Features
- Equipped with 12th/13th Gen Intel Alder Lake-P / Raptor Lake-P processors(i3-1220P / i5-1250P / i7-1270P),28W TDP
- 10×10 board specification,ultra-compact dimension of 100×100mm
- Dual-channel DDR5 4800MHz, up to 64GB,2×SO-DIMM
- 2×RJ45 LAN ports (Intel i211 Gigabit Adaptive), dual-network communication
- Triple display outputs: 1×HDMI2.0 + 1×DP++ + 1×eDP, HDMI/DP
- 1×M.2 M-Key 2280 (NVMe PCIe 4.0 x4 / SATA3.0) + 1×M.2 E-Key (WiFi/Bluetooth) + 1×SATA3.0
- Wide temperature design: -20~60°C operating / -40~85°C storage, supports Windows / Linux
The board supports dual-channel DDR5 4800MHz memory up to 64GB via 2×SO-DIMM sockets, delivering ample bandwidth for big data processing. Display output is a key highlight: it features triple display interfaces including 1×HDMI2.0 + 1×DP++ + 1×eDP. HDMI2.0 and DP support up to 4096×2160@60Hz, while eDP reaches 4096×2160@120Hz with HDR, meeting multi-screen and high refresh rate requirements.
Flexible storage expansion: 1×M.2 M-Key 2280 supports NVMe PCIe 4.0 x4 or SATA3.0 protocols; 1×M.2 E-Key is for WiFi/Bluetooth; an additional 1×SATA3.0 (2Pin 5V) interface is available. Networking comes with 2×RJ45 LAN ports powered by Intel Ethernet Controller i211, supporting 10/100/1000M auto-negotiation. For USB connectivity, there are 4×USB3.2 on the rear panel plus 2×USB2.0 via pin header expansion (2.0mm 2×5Pin). Serial ports include 1×RS232/485/422 (2.0mm) and front-panel serial port. Audio is handled by a combo audio jack and ALC897 audio controller. Other onboard features: 1×Power Button + 1×Reset Button, optional TPM2.0, and watchdog timer.
Power input: DC 12–19V, 150W, powered by 1×DC Jack adapter. Operating temperature: -20~60°C; storage temperature: -40~85°C. It supports Windows and Linux operating systems. Widely deployed in compact scenarios such as industrial edge computing, embedded control, digital signage, and machine vision.
| EMB-2121 | |
| Processor | 12th/13th Gen Intel Alder Lake-P / Raptor Lake-P i3-1220P (10 Cores / 12 Threads, 3.3GHz, 12MB Cache, 28W) i5-1250P (12 Cores / 16 Threads, 3.3GHz, 12MB Cache, 28W) i7-1270P (12 Cores / 16 Threads, 3.5GHz, 18MB Cache, 28W) |
| BIOS | AMI EFI with CMOS backup in 32MB SPI BIOS |
| Memory Form Factor | DDR5 4800MHz |
| Max Memory Capacity | 64GB |
| Memory Sockets | 2×SO-DIMM (Dual Channel) |
| PCIe Expansion | 1×PEG x4（PCIe Gen4） |
| M.2 Sockets | 1×M.2 M-Key 2280 (NVMe PCIe 4.0 x4 or SATA3.0 protocol) 1×M.2 E-Key (PCIe + USB2.0 protocol, for WiFi/Bluetooth) |
| SATA Interface | 1×SATA3.0（2Pin 5V） |
| Display Outputs | 1×HDMI2.0 (Rear Panel) 1×DP++ (Rear Panel) 1×eDP (Rear Panel / Pin Header) HDMI2.0/DP up to 4096×2160@60Hz eDP up to 4096×2160@120Hz HDR |
| USB Interface | Rear Panel: 4×USB3.2 Pin Header: 2×USB2.0 (2.0mm 2×5Pin) |
| Serial Port | 1×RS232/485/422（2.0mm） Front Panel Serial Port |
| Network Interface | 2×RJ45 (Intel Ethernet Controller i211, 10/100/1000M Auto-negotiation) |
| Audio | Combo Audio Jack (ALC897) |
| Buttons | 1×Power Button + 1×Reset Button |
| TPM | TPM2.0（Option） |
| Watchdog | Supported |
| Power Input | DC 12-19V，150W |
| Power Connector | 1×DC Jack, Power Adapter Supply |
| Operating Temperature | -20~60℃ |
| Storage Temperature | -40~85℃ |
| Board Size | 10*10 board 100×100mm |
| PCB Color | Green |
| Operating System | Windows / Linux |
Please contact our sales team for the latest ordering information.
