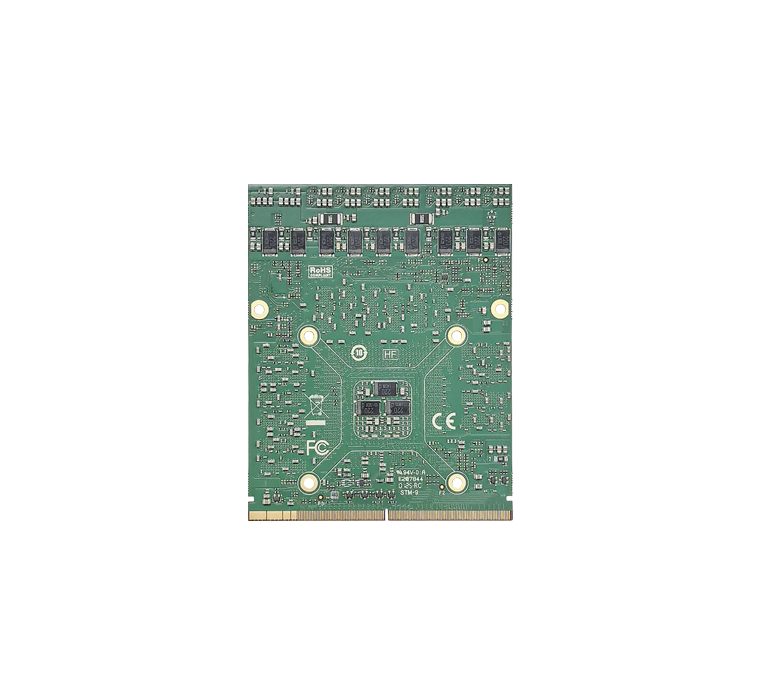

RTX3080Tim MXM Module
The MM3080TIB6-16G V2 is a high-end MXM graphics card built on the NVIDIA Ampere architecture. It features 16GB GDDR6 memory, 7424 CUDA cores, a full-speed PCIe 4.0 x16 interface, and 4 independent 8K display outputs, delivering top-tier compute and graphics performance for high-performance embedded graphics workstations.
Product Features
- NVIDIA Ampere Architecture, NVIDIA GeForce RTX 3080 Ti Mobility GPU
- 16 GB GDDR6, 256-bit Memory Interface
- 7424 CUDA Cores, 232 Tensor Cores, 58 RT Cores
- MXM 3.1 Type B (105 × 82 mm)
- 2 × DisplayPort 1.4++ + HDMI 2.1 + DisplayPort 1.4++
- TDP: 160 W (110 W optional)
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What is the RTX 3080 Ti MXM module and which devices is it compatible with?
The RTX 3080 Ti MXM module (MM3080TIB6-16G V2) is a high-end embedded graphics card based on the NVIDIA Ampere architecture, featuring 7424 CUDA cores, 232 Tensor cores, and 58 RT cores. It adopts the MXM 3.1 Type B form factor (105 × 82 mm), making it an ideal upgrade or replacement solution for embedded systems, industrial computers, all-in-one workstations, and high-performance laptops that support the MXM 3.1 Type B interface.
What are the memory, interface, and display specifications of this MXM graphics module?
This module is equipped with 16 GB of GDDR6 memory on a 256-bit interface, connected via a full-speed PCIe 4.0 x16 interface. For display output, it provides 4 independent outputs — 2 × DisplayPort 1.4++ + 1 × HDMI 2.1 + 1 × DisplayPort 1.4++ — supporting up to four independent 8K displays, ideal for multi-screen visualization and high-resolution rendering scenarios.
What is the TDP of the RTX 3080 Ti MXM module, and how should I handle thermal design and power supply?
The module has a TDP of 160 W, with an optional 110 W low-power version available. When integrating this module, ensure your host system provides adequate power delivery and cooling capacity — a well-designed heatsink/fan solution with sufficient airflow is recommended to maintain stable performance under sustained workloads. If your system has limited thermal headroom, the 110 W version offers a more flexible option. Contact our technical support team for integration guidance or customization.
Can't find the answer you need? Our team is happy to help with product selection and customization.
