ECM-C132 COM Express Type 6 Module
ECM-C132 is a compact COM-Express Type 6 core board based on Intel 12th/13th Gen Core platform.It adopts the standard 95×95mm form factor and DDR5 memory technology,delivering powerful computong performance and flexible expansion capabilities for medical imaging,industrial automation and edge computing.
Product Features
-
Intel 12th/13th Gen Core Processors, optional i3/i5/i7, up to 14 cores and 20 threads
-
2×DDR5 SO-DIMM, 4800MHz, up to 64GB
-
PCIe Gen4 PEG + multi-lane PCIe Gen3 expansion
-
4 independent displays: LVDS/eDP + 3×DDI + VGA, supports 4K@60Hz
-
Intel 2.5G LAN, 10M~2.5Gbps auto-adaptive
-
4×USB 3.2 Gen2 + 8×USB 2.0 + 2×SATA3.0 + 2×RS232
-
95×95mm standard size, supports Windows/Linux
ECM-C132 COM-Express Type 6 Compact Core Board is a new-generation modular computing platform launched by ZRT Technology for high-end embedded computing. Built on Intel 12th Gen Alder Lake and 13th Gen Raptor Lake processor architectures, it offers a wide selection of CPUs ranging from i3-7305E to i7-13700H, covering scenarios from 15W low power consumption to 45W high performance to meet differentiated computing requirements across various industries.

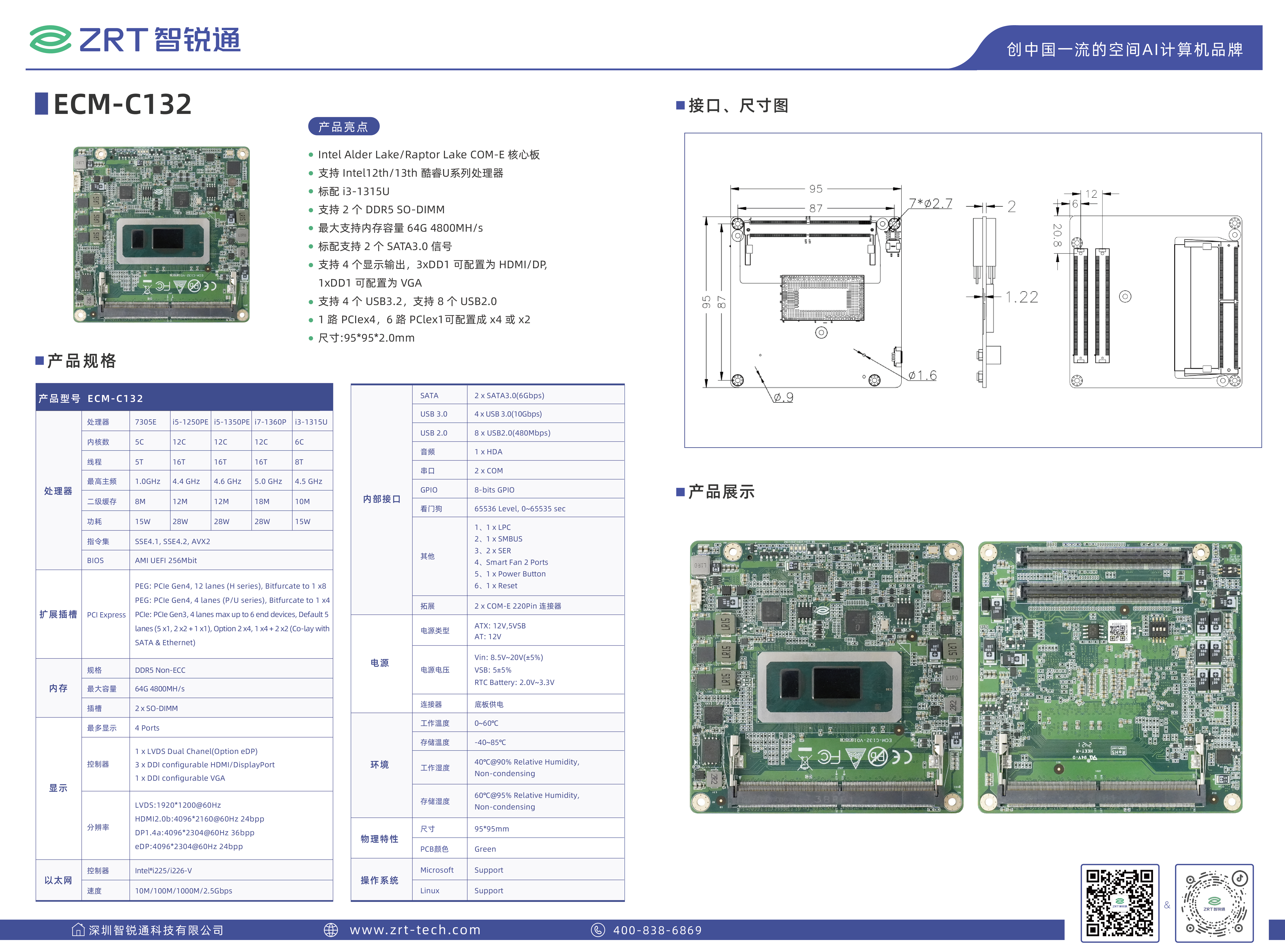

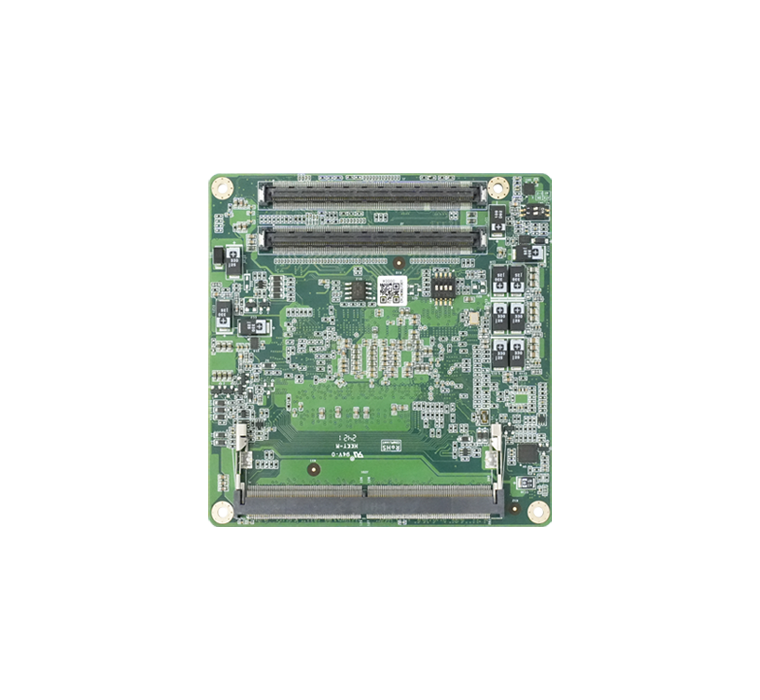

The core board features the standard 95×95mm COM-Express Compact form factor and interfaces with the carrier board via dual 220Pin connectors, offering full compatibility with Type 6 standard carrier boards such as ECM-TYPE6A. It is equipped with 2×SO-DIMM DDR5 memory slots, supporting a maximum frequency of 4800MHz and capacity up to 64GB, delivering dual improvements in bandwidth and energy efficiency compared with DDR4.
In terms of expansion capabilities, the PEG interface supports PCIe Gen4. H-series processors can be configured with x8 lanes, while P/U-series provide x4 lanes. Additional PCIe Gen3 buses can be flexibly allocated into multiple topologies including 5×x1, 2×x2+1×x1 or 2×x4, well suited for expansion devices such as GPUs, FPGAs and high-speed acquisition cards. The integrated display outputs include 1×LVDS (eDP optional) + 3×DDI + 1×VGA. Four independent displays support 4K@60Hz to accommodate complex applications like medical diagnostic monitors and industrial multi-screen HMIs.
Technical Documentation
Contact Us
- Get A Quote
- mkt@zrt-tech.com
- 400-838-6869
- 21st Floor, Tower A, Country Garden Phoenix Intelligent Valley, Baoan District, Shenzhen
FAQ
Answers to common questions about this product. For further details, contact our technical support team.
What processors does the ECM-C132 COM Express Type 6 module support?
The ECM-C132 supports Intel 12th Gen Alder Lake and 13th Gen Raptor Lake processors, with CPU options ranging from i3-7305E to i7-13700H. It covers a wide TDP range from 15W low-power P/U-series to 45W high-performance H-series, allowing customers to select the optimal balance of computing power and energy efficiency for their embedded application.
What memory and expansion capabilities does the ECM-C132 offer?
The module provides 2× SO-DIMM DDR5 slots supporting up to 64GB at 4800MHz, doubling bandwidth and energy efficiency over DDR4. For expansion, the PEG interface supports PCIe Gen4 (x8 lanes with H-series CPUs, x4 with P/U-series), and additional PCIe Gen3 lanes can be configured as 5×x1, 2×x2+1×x1, or 2×x4 — ideal for GPUs, FPGAs, and high-speed acquisition cards.
How many displays can the ECM-C132 drive, and what network/storage interfaces does it have?
The ECM-C132 supports 4 independent displays (1× LVDS or optional eDP + 3× DDI + 1× VGA), each capable of 4K@60Hz, making it well suited for medical diagnostic monitors and industrial multi-screen HMIs. Networking is provided by Intel® i225/i226-V 2.5GbE LAN (backward compatible with Gigabit/100Mbps), with 2× SATA 3.0 (6Gbps) storage, 4× USB 3.2 Gen2 (10Gbps), 8× USB 2.0, and industrial interfaces including 2× RS232, 8-bit GPIO, LPC, and SMBus.
Is the ECM-C132 compatible with standard COM Express Type 6 carrier boards?
Yes. The ECM-C132 adopts the standard 95×95mm COM Express Compact form factor and connects to carrier boards via dual 220-pin connectors. It is fully compatible with standard Type 6 carrier boards such as ZRT’s ECM-TYPE6A, enabling customers to upgrade existing designs or develop custom carrier boards without changing the core module architecture.
