Products

ZRT product center banner
ZRT RTX4060m-1

MM4060A6-8G

RTX4060m MXM Module

  • Ada Lovelace Architecture, RTX4060 Max-Q GPU
  • 8GB GDDR6 VRAM
  • 3072 CUDA Cores
  • MXM 3.1 Type A, PCIe 4.0 x8
  • Multi-channel 8K Output, 60W TDP
ZRT RTX4070m-1

MM4070A6-8G

RTX4070m MXM Module

  • Ada Lovelace Architecture, RTX4070 Max-Q GPU
  •  8GB GDDR6 VRAM
  • 4608 CUDA Cores
  • MXM 3.1 Type A, PCIe 4.0 x8
  •  Multi-channel 8K Output, 65W TDP

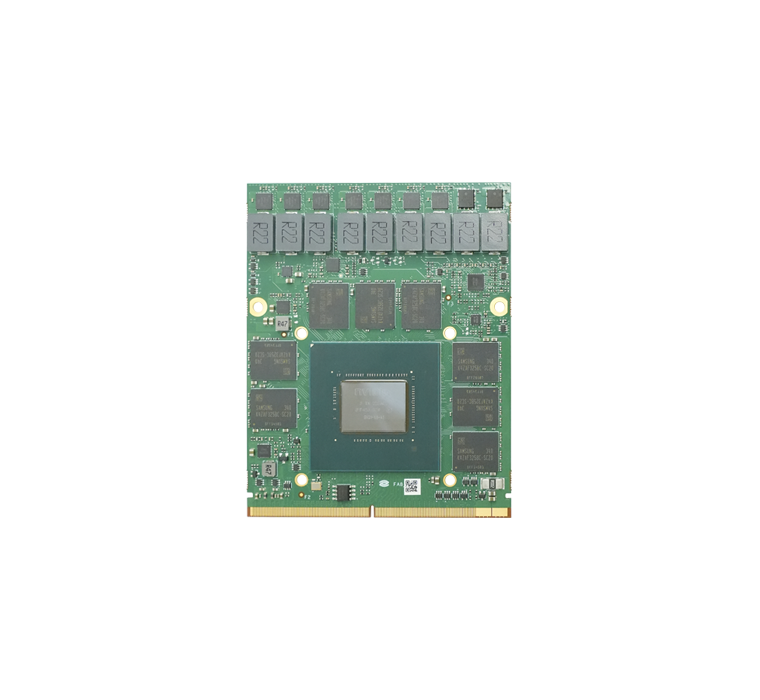

ZRT RTX4080-1

MM4080B6-12G

RTX4080m MXM Module

  • Ada Lovelace Architecture, RTX4080 Max-Q GPU
  • 12GB GDDR6 VRAM
  • 7427 CUDA Cores
  • MXM 3.1 Type B, PCIe 4.0 x16
  • Multi-channel 8K Display Output, 125W TDP

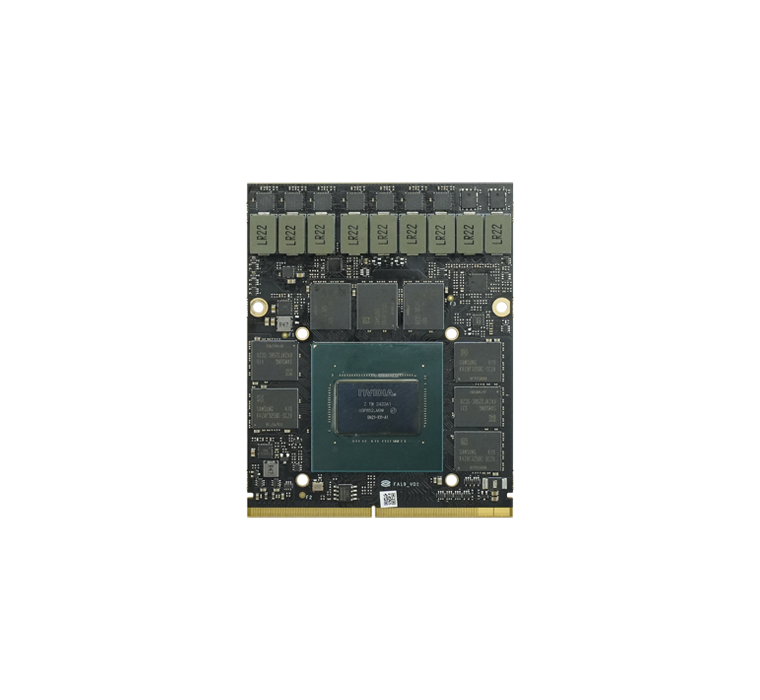

ZRT RTX4090-1

MM4090B6-16G

RTX 4090M MXM Module

  • Ada Lovelace Architecture,RTX4090 Max-Q GPU
  • 16GB GDDR6 VARM
  • 9728 CUDA Cores
  • MXM 3.1 Type B，PCIe 4.0 x16
  • Multi-channel 8k display output,130W TDP
ZRT industrial computing product image

EMB-2121

Ultra-compact 10×10 Industrial Motherboard, EMB-2121

  • 12th Gen Intel Skylake-U Core i5/i7 CPU，15W
  • Mini 1010 cm compact form factor
  • DDR5,2*SO-DIMM,up to 64GB
  • Supports triple display:HDMI + DP + eDP
  • 1×SATA 3.0, 2×M.2, 4×USB3.2, 2×USB2.0, 2×RJ45
ZRT q670-3

EC0-Q670

EC0-Q670 Industrial ATX Motherboard

  • Intel 12th/13th/14th Gen LGA1700,Core i3~i9 CPU
  • ATX From Factor Industrial
  • DDR5 up to 128GB(ECC Optional)
  • 4×SATA3.0 + 4×M.2
  • 5×PCIe + 2×PCI + LPT + PS/2
ZRT Q170-3

EC9-Q170

Industrial mATX Motherboard EC9-Q170

  • Equipped with Intel 6th/7th/8th/9th Gen Skylake / Kaby Lake / Coffee Lake processors
  • mATX(Micro-ATX) from factor industrial,244×220mm
  • Dual-channel DDR4 up to 64GB,2×U-DIMM
  • 3×PCIe + 4×SATA3.0 + 1×M.2
  • Quad display output:HDMI + DP + VGA + LVDS
ZRT industrial computing product image

EMA-7103

Industrial-grade Mini-ITX Motherboard EMA-7103

  • Intel 11th Gen Tiger Lake-H, Core i5~i9 CPUs
  • 7-inch compact design, supports MXM graphics card expansion
  • Dual-channel DDR4 3200MHz up to 64GB, 2×SO-DIMM
  • 3×M.2 + 1×SATA3.0 + 1×SIM
  • 2×RJ45 ports (Intel i225-V 2.5GbE), high-speed network communication
ZRT industrial computing product image

EMA-7112

Industrial-grade Mini-ITX Motherboard EMA-7112

  • Intel 11th Gen Tiger Lake-H,i5~i9 CPU
  • DDR4 up to 64GB
  • 1×MXM 3.1 slot + PCIe x4
  • 3×M.2 + 2×SATA3.0 + 1×SIM
  • 2×RJ45 ports (Intel i225-AT 2.5GbE)
ZRT industrial computing product image

EMA-7132

Industrial-grade Mini-ITX Motherboard EMA-7132

  • Intel 12th/13th Gen Alder Lake-H / Raptor Lake-H, i5~i9
  • Dual-channel DDR5 4800MT/s (12th Gen) / 5600MT/s (13th Gen), up to 96GB
  •  1×PCIe x16（PEG，PCIe Gen4）+ 3×PCIe x4（PCIe Gen4）+ 2×PCI
  • 4-channel display output, industrial-grade reliability
  • Quad display: HDMI + DP + VGA + LVDS/eDP
ZRT EC10-4

MIN-EC10

Compact Medical Embedded Box PC MIN-EC10

  • Intel i7-11850H，8 Cores 16 Threads,up to 4.9GHz
  • Compact Chassis:280×229.7×97.5mm
  • Optional MXM Discrete GPU:RTX4090m/4080m/3080m
  • DDR4 RAM up to 64GB + Triple M.2 Storage Expansion
  • Dual Ethernet Ports + Type C,Mobile GPU Workstation


ZRT MIN-EC09A-4

MIN-EC09A

MIN-EC09A Compact Edge Computing System

  • Intel 8th/9th Gen Coffee Lake-S i3~i7 Processors
  • Compact all-aluminum 282×208×79.5mm
  • Optional RTX3060/3070 MXM discrete GPU
  • Triple display output + dual COM ports + 8-bit GPIO
  • Dual DC power input,industrial-grade reliability
